Genuine Made in Spain Weber Carbs by themselves NOT IN KITS
NEW Genuine Weber Carbs by themselves Not in a Conversion Kit.
We ONLY sell new Genuine Made in Spain Weber Carbs. No Chines Copies like many of the others
are trying to Pass Off as Original.
All New Weber Carb Purchases get FREE Ground Shipping in Lower 48 States.
Intl. AK, HI, PR and APO/FPO pay actual shipping charges
You can Click the Carb model Below to order and along side it is the list of Jets that comes in the
Note that this may not be the jetting that is in an older model Weber carb. Before you start tuning any Weber carb it is recommended that you remove the jets and make a list of what your carb currently has. You cannot make proper jet choices for tuning if you do not know what you are starting with. This list is so you know what will be in any new carbs you purchase from us.
The Listing of Jets in this Table is what comes in the new carb when you purchase it.
|
Carb Model
|
Part #
Click Carb # to order ! |
Main Venturi
|
Aux Venturi
|
Main Jet
|
Em Tube
|
Air Corr Jet
|
Idle Jet
|
Pump Jet
|
Pump Exh
|
Needle Valve
|
Choke Type
|
| 32/36 DFEV | 22680.070 |
26/27 | 3.5/3.5 | 137/140 | F50/F66 | 165/160 | 60/50 | 55 | 2.00 | ELECTRIC | |
| 32/36 DGV 5A | 22680.005 |
26/27 | 3.5/3.5 | 140/135 | F50/F6 | 165/160 | 55/50 | 50 | 2.00 | MANUAL | |
| 32/36 DGAV 32/36 DGEV |
22680.051B 22680.033B |
26/27 | 3.5/3.5 | 140/140 | F50/F50 | 170/160 | 60/50 | 50 | 2.00 | WATER ELECTRIC |
|
| 34 ICH | 15290.027 |
29 | 3.5 | 165 | F6 | 190 | 50 | 55 | 40 | 1.75 | MANUAL |
| 34 ICT | 15290.035 |
27 | 4.5 | 130 | F78 | 160 | 52 | 50 | 40 | 1.75 | NONE |
| 38 DGES or 38 DGMS |
18930.020 18930.086 |
30 | 4.0 | 135 | F50 | 185 | 50 Fat and Skinny | 70 | 30 | 2.50 | ELECTRIC or MANUAL |
| 40 DCOE 151 | 19550.174 |
30 | 4.5 | 115 | F11 | 200 | 45F9 | 40 | 50 | 1.75 | MANUAL |
| 40 DCNF 12 | 18950.060 |
30 | 4.5 | 125 | F24 | 220 | 50 | 45 | 100 | 1.75 | MANUAL |
| 40 IDF 70 | 18950.138 |
28 | 4.5 | 115 | F11 | 200 | 50 | 50 | 55 | 1.75 | MANUAL |
| 44 IDF 71 | 18990.030 |
36 | 4.5 | 135 | F11 | 175 | 50 | 50 | 55 | 1.75 | MANUAL |

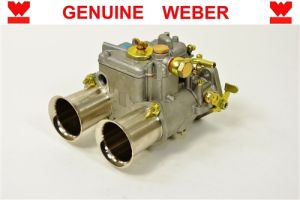

| 45 DCOE 152 | 19600.060 |
36 | 4.5 | 145 | F16 | 155 | 55F8 | 45 | 40 | 2.00 | MANUAL |
| 46 IDA and 40 IDA 3C,3C1 | NO LONGER MADE. See PMO Carb Page: | 40 | 4.5 | 170 | F24 | 145 | 70 | 50 | 100 | 1.75 | NONE |
| 48 DCO SP | 19630.007 |
42 | 5.0 | 180 | F7 | 160 | 65F8 | 45 | 100 | 2.50 | NONE |
| 48 IDA | 19030.015 |
37 | 4.5 | 135 | F7 | 120 | 70F10 | 50 | 000 | 2.00 | NONE |
| 48 IDF 6 | 19030.021 |
40 | 4.5 | 150 | F2 | 180 | 55 | 50 | 000 | 2.00 | NONE |
| 50 DCO SP 50 DCO 1 SP |
46 | 5.0 | 180 | F7 | 160 | 65F8 | 45 | 100 | 2.50 | NONE | |
| 55DCO 55 DCO 1/SP |
19700.001 19700.002 |
48 | 5.0 | 180 | F9 | 180 | 60F8 | 45 | 100 | 2.50 | NONE |
