Triumph
Triumph
| Make Model Year |
Engine Type |
Kit Number |
Note | Qty | Model | Part Number |
Manifold Adapter Part Number |
Linkage Kit Part Number |
Air Filter Assembly |
Carburetor Base Gasket |
Adapter Gasket KIT |
| Spitfire | 1300, 1500 | K054 | Electric Choke | 1 | 32/36 DGEV | 22680.033B | 99003.807 | 99217.331 | 99005.065 | ||
| 67-on | K124 | Proline Street Per | 1 | 40 DCOE | 19550.174 | 99003.804 | 99006.104 | # 5 Order | 99005.145 | ||
| K126 | Proline Street Per | 1 | 45 DCOE | 19600.060 | 99003.804 | 99006.104 | Seperatley | 99005.145 | |||
| (8. | These kits come with both electric and water choke elements. You can chose either style at the time of your installation. | K125 | Proline Street Per | 2 | 40 DCOE | 19550.174 | 99003.806 | 99006.105 | 99005.145 | ||
| TR2, 3, 4 55-67 Port Diameter 1 7/16" |
w/ High Port Head |
K131 # 4 |
Proline Street Per | 2 | 45 DCOE (Low port Manifold/Adapter use 99002.041) |
19600.060 | 99003.809 | 99006.105 | # 5 Order Seperatley |
99005.145 x 2 |
|
| TR6, | K156 | w/ Electric Choke | 2 | 32/36 DGEV | 22680.033B | 99004.156 | Kit | 99217.332S | 99005.068 | ||
| & TR250 | K156M | w/Manual Choke | 2 | 32/36 DGV | 22680.005 | 99004.156 | Only | 99217.332S | 99005.068 | ||
| 68-76 | K156-38 | w/ Electric Choke | 2 | 38 DGES | 18930.020 | 99004.156 | 99217.332S | 99005.065 | |||
| K156-38M | w/Manual Choke | 2 | 38 DGMS | 18930.056 | 99004.156 | 99217.332S | 99005.065 | ||||
| Recommend K156M ! | |||||||||||

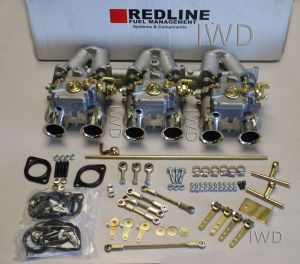

| TR6, & TR250 9/71-on |
Center, Intake port distance 7/8" |
K153 # 4 |
Proline Street Per | 3 | 40 DCOE | 19550.174 Center Intake port dist 7/8" |
99003.820 | 99006.106 | # 5 Order Seperatley |
99005.145 x 3 |
|
| TR6, & TR250 69-8/71 |
Center, Intake port distance 5/8" |
K151 # 4 |
Proline Street Per | 3 | 40 DCOE | 19550.174 Center Intake port dist 5/8" |
99003.810 | 99006.106 | # 5 Order Seperatley |
99005.145 x 3 |
|
| TR7 | single Zenith | K158 | Electric Choke | 1 | 32/36 DFEV | 22680.070 | 99004.158 | Kit | 99217.473 | 99005.068 | |
| dual Zenith | K157 | Electric Choke | 2 | 32/36 DFEV | 22680.070 | 99004.157 | Only | 99217.473 | 99005.068 | ||
| K161 | Proline Street Pre | 2 | 40 DCOE | 19550.174 | 99002.148 | 99006.105 | # 5 Order | 99005.145 | |||
| # 4 | Seperatley | x 2 |
