TECH ARTICLE: How to identify your M30 Camshaft. Zoom

TECH ARTICLE: How to identify your M30 Camshaft.

Click here if you Need Help or have a question about this product

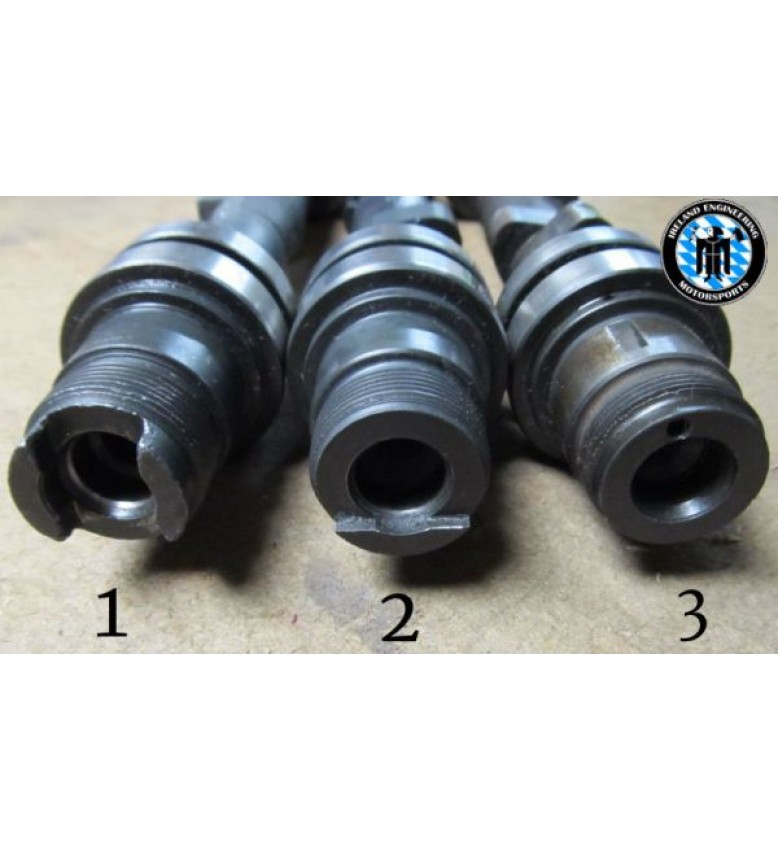

M30 Camshaft Nose Differences:

-Carburated - Early M30 engines with distributors (E9 chassis, & E12/E24 08/1981 and earlier)
--Visual ID #1 EARLY: Cam nose has two half-moon shaped prongs

-L-Jetronic - M30's from 09/1981 to 01/1984.
--Visual ID #2 MID: Cam nose has 1 half-moon shaped prong

-Motronic - 01/1984 and later,
--Visual ID #3 LATE: Cam nose has flat-face and dowel pin hole.

** IMPORTANT: The BMW cross-over dates are NOT set in stone. Many of these cams/heads have been changed over the years and the only sure-fire way to know is to perform a visual inspection. All these cams are not interchangeable without changing the rest of the ignition system.

SKU: M30CAMID

Availability: In stock

$0.00

Domestic Shipping: Calculated after checkout based on your location.

International Shipping: Calculated after checkout based on your location.



Product Description

    Details

    M30 Camshaft Nose Differences:

    -Carburated - Early M30 engines with distributors (E9 chassis, & E12/E24 08/1981 and earlier)
    --Visual ID #1 EARLY: Cam nose has two half-moon shaped prongs

    -L-Jetronic - M30's from 09/1981 to 01/1984.
    --Visual ID #2 MID: Cam nose has 1 half-moon shaped prong

    -Motronic - 01/1984 and later,
    --Visual ID #3 LATE: Cam nose has flat-face and dowel pin hole.

    ** IMPORTANT: The BMW cross-over dates are NOT set in stone. Many of these cams/heads have been changed over the years and the only sure-fire way to know is to perform a visual inspection. All these cams are not interchangeable without changing the rest of the ignition system.
